Extender 70m

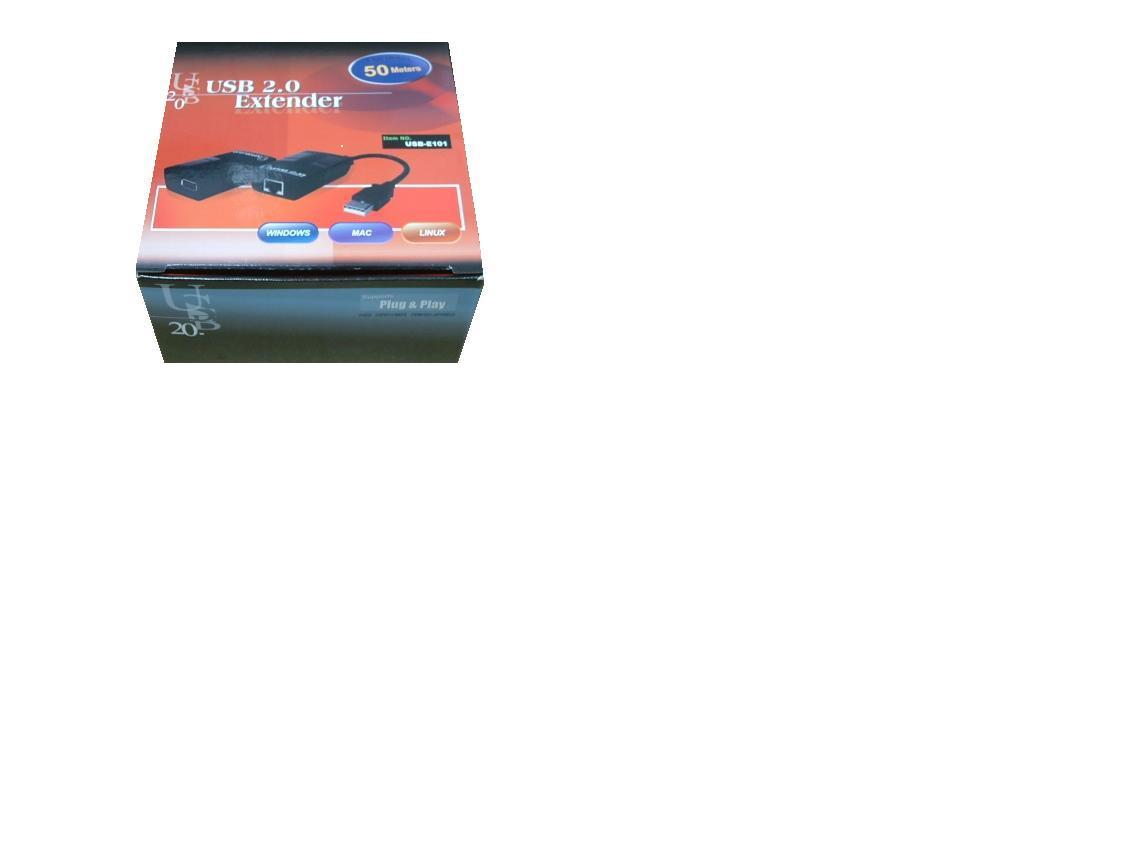

USB-E101

The USB 2.0 Extender is a low cost high performance that enables USB 2.0 connectivity over Cat. 5 / 5e / 6 at data rates up to 480Mbps; extends true USB up to 70m (230ft) over standard Cat. 5 cabling. Eliminates the 5 meters distance limitation of USB. Supporting all USB devices over a variety of media without the need of additional software driver and it is also a true plug-and-play solution, compatible with all leading operating systems that support USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.

True plug and play, no driver installation required

Extends USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices up to 70m (230ft) over Cat. 5 / 5e / 6 cables

Supports all USB device types: Control, Interrupt, Bulk and Isochronous at up to 480Mbps

Ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, web cams, and game controllers.

Complies with Windows OS 2000/XP/Vista/7/8/8.1/10; Mac OS, Linux OS or higher

Fully Compliant with USB specification 1.1 and 2.0

	Connector Transmitter Upstream			15cm USB cable with USB Type A Male

	Connector Transmitter Output			RJ-45 Female

	Connector Receiver Input			RJ-45 Female

	Connector Receiver Downstream			USB Type A Female

	Interconnection Cable			Standard Cat.5/5e/6

	Max. Cable Length			70m (230ft)

	LED			1

	Housing			Plastic

	Dimension ( L x W x H )			66 x 39 x 20mm

	Power Mode			External power adapter for Rx

	Power Consumption			5VDC 1A for Rx

	USB Specification			USB 1.1/2.0 compliant

	Operating Temperature			0°C to 50°C

	Windows OS: 2000/XP/Vista/7/8/8.1/10 or higher
	Mac OS: 8.6/9.x/10.x or higher
	Linux OS: Kernel 1.5.0 or higher
