FR-200
The IEEE-1394b repeater cable is not a passive extension cable. It could be cascaded (up to 10 x 5M each cable ) to extend the distance of up to 50M between IEEE-1394b devices and your computer, and regenerate the IEEE-1394b signal for maximum reliability and performance over extended distances at maximum transfer rate of 800Mbps.
 |
With the newest version of 1394b multimedia standard; adds bandwidth, distance and new arbitration |
|
Provides the fastest transferring rate at up to 800 Mbps |
|
Provides better signal-to-noise ratios and less jitter than other applications |
|
Features the best connection for DTV and HDTV for the time being |
|
Plug & Play and Hot- Swapping mode |
| Chip | T1 | ||||||||
| Data Transfer Rate | 100/200/400/800 Mbps | ||||||||
| Connector Host | IEEE-1394b 9P Male | ||||||||
| Connector Device | IEEE-1394b 9P Female | ||||||||
| Power Mode | Bus powered | ||||||||
| Cable Length | 5m IEEE-1394b | ||||||||
| Housing | Plastic | ||||||||
|
Windows OS: 98SE/Me/2000/XP/Vista/7/8/8.1/10 |
|
Mac OS: 8.6/9.x/10.x |
 |
 |
 |
.jpg) |
 |
|
FR-200DL
The IEEE-1394b repeater cable is not a passive extension cable. It could be cascaded (up to 5 x 10m each cable ) to extend the distance of up to 50m between IEEE-1394b devices and your computer, and regenerate the IEEE-1394b signal for maximum reliability and performance over extended distances at maximum transfer rate of 800Mbps.
|
With the newest version of 1394 multimedia standard; adds bandwidth, distance and new arbitration |
|
Provides the fastest transferring rate at up to 800 Mbps |
|
Provides better signal-to-noise ratios and less jitter than other applications |
|
Plug & Play and Hot-Swapping mode |
| Chip | TI | ||||||||
| Data Transfer Rate | 100/200/400/800 Mbps | ||||||||
| Connector Host | IEEE-1394b 9P Male | ||||||||
| Connector Device | IEEE-1394b 9P Female | ||||||||
| Power Mode | Bus powered | ||||||||
| Cable Length | 10m IEEE-1394b | ||||||||
| Housing | Plastic | ||||||||
|
Windows OS: 98SE/Me/2000/XP/Vista/7/8/8.1/10 |
|
Mac OS: 8.6/9.x/10.x |
|
|
|
 |
|
 |
FR-100DL
The IEEE-1394a repeater cable is not a passive extension cable. It could be cascaded (up to 5) to extend the distance of up to 50m (10m each cable) between IEEE-1394a devices and your computer, and regenerate the IEEE-1394a signal for maximum reliability and performance over extended distances at maximum transfer rate of 400Mbps.
|
Compliant with IEEE 1394-1995 and compliant with 1394a |
|
Performs function of 1394a transfer rate of 100/200/400 Mbps |
|
Supports Plug & Play specification |
|
A Power Provider supports Cable Powered mode |
|
Using PC inner power supply |
|
Easy plug and play installation. |
|
Cascaded (up to 5) to extend the distance of up to 50m between IEEE-1394a devices and your computer |
| Chip | AGERE | ||||||||
| Speed | 400/200/100 Mbps | ||||||||
| Connector Host | IEEE-1394a 6P Male | ||||||||
| Connector Device | IEEE-1394a 6P Female | ||||||||
| Power Mode | Bus powered | ||||||||
| Cable Length | 10m IEEE-1394a | ||||||||
| Casing Material | Plastic | ||||||||
| Operating Temperature | 5 ~ 40℃ | ||||||||
| Storage Temperature | -20 ~ 60℃ | ||||||||
| Humidity | 0~80% RH | ||||||||
|
Windows OS: 98SE/Me/2000/XP/Vista/7/8/8.1/10 |
|
Mac OS: 8.6/9.x/10.x |
|
|
|
|
 |
.jpg) |

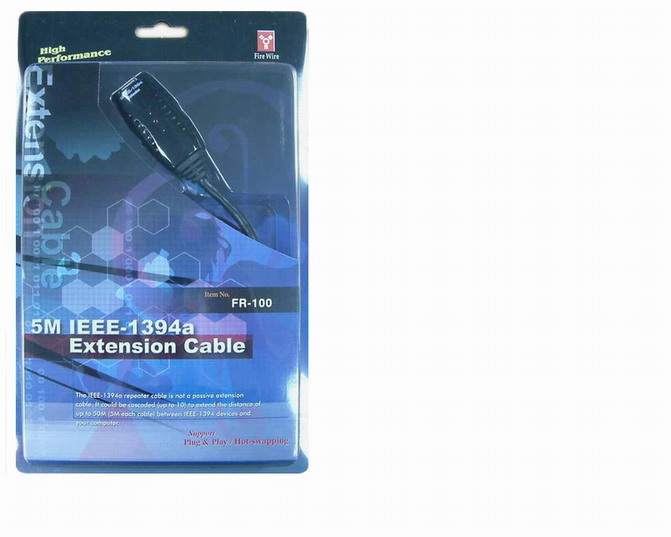

FR-100
The IEEE-1394a repeater cable is not a passive extension cable. It could be cascaded (up to 10) to extend the distance of up to 50M (5M each cable) between IEEE-1394a devices and your computer, and regenerate the IEEE-1394a signal for maximum reliability and performance over extended distances at maximum transfer rate of 400Mbps.
|
Fully Compliant with IEEE-1394a |
|
Supports Data Transfer Rate of 400 Mbps High-Speed, 200 Mbps Full-Speed, and 100 Mbps Low-Speed |
|
Provides a Maximum Distance of up to 50M by Cascading |
|
Supports Plug & Play |
|
Supports Bus Powered Mode |
| Chip | AGERE | ||||||||
| Speed | 400/200/100 Mbps | ||||||||
| Connector | IEEE-1394a 6P Female | ||||||||
| Power Mode | Bus powered | ||||||||
| Cable Length | 5-M IEEE-1394a | ||||||||
| Casing Material | Plastic | ||||||||
| Operating Temperature | 5 ~ 40℃ | ||||||||
| Storage Temperature | -20 ~ 60℃ | ||||||||
| Humidity | 0~80% RH | ||||||||
|
Windows OS: 98SE/Me/2000/XP/Vista/7/8/8.1/10 |
|
Mac OS: 8.6/9.x/10.x |
|
|
|
|
|
.jpg) |
