DP-14R ~New~

DP-14R integrates a point-to-point connection DisplayPort Repeater to simplify system equipments; and lower cost for applications requiring single DisplayPort input and output device in personal computing system and other emerging digital appliances.

*Remarks: The cascading length depends on the cable quality. Strongly recommends using the certified DP cables.

Supports UHD resolutions up to 7680 X 4320 @60Hz & 3840 X 2160 @144Hz 4:2:2 10bit

Supports data rates up to 8.1 Gbps / lane or 32.4 Gbps total

Fully compliant with DisplayPort specification 1.4 HBR3, HDCP 2.3, HDR, DPCP

Supports 4k @144Hz ( max. length: 2m in; 10m out ); 8K @30Hz ( max. length: 2m in; 10m out )

Enables cascading 5 levels at 4K 144Hz*

Supports DP++ Dual Mode, compatible with HDMI, DVI or VGA adapters

	Connectors Input			DisplayPort 20 Pin Female

	Connectors Output			DisplayPort 20 Pin Female

	UHD Resolution			7680 X 4320 @60Hz

	Environment Operating Temp.			5 ℃ ~ 40 ℃

	Environment Storage Temp.			-20 ℃ ~ 60 ℃

	Environment Humidity			0~80% RH, Non-condensing

	Power Supply			5VDC 1A

	LED			1

	Housing			Plastic

	Dimension ( L x W x H )			55 x 54 x 20 mm

	Windows OS: 2000/XP/Vista/7/8/8.1/10 or higher
	Mac OS: 9.x/10.x or higher
	Linux OS

See Larger Image

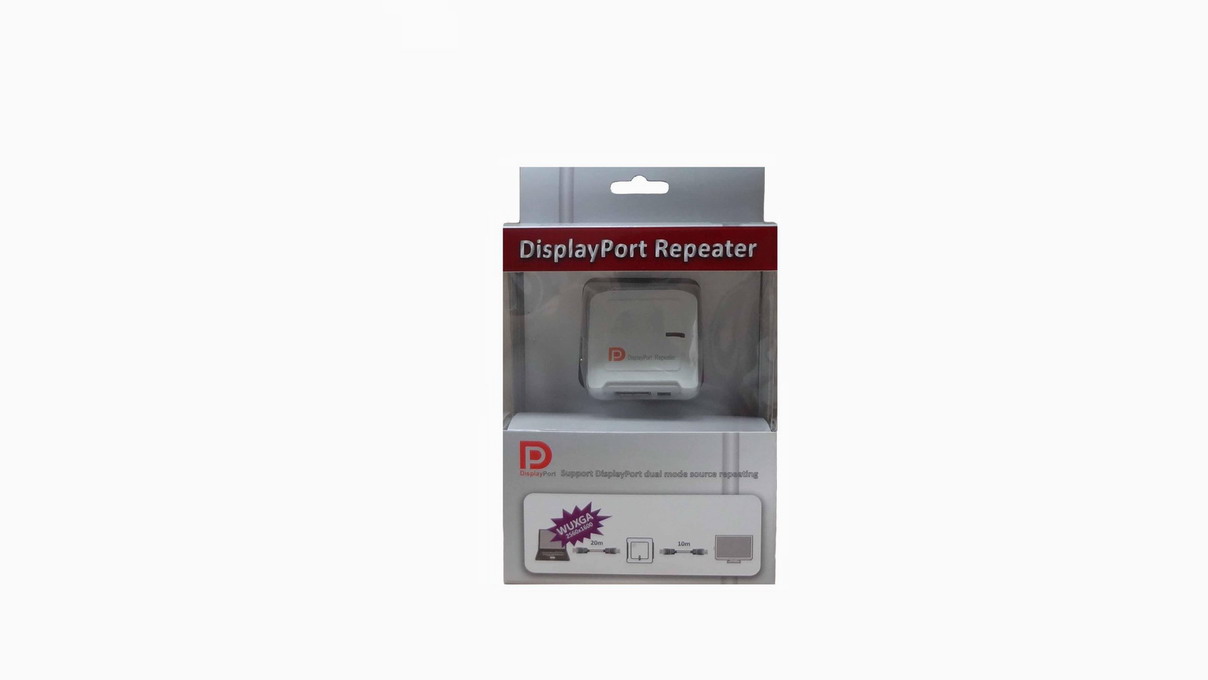

DP-R01-130

DP-R01-130 integrates a point-to-point connection DisplayPort Repeater to simplify system equipments; and lower cost for applications requiring single DisplayPort input and output device in personal computing system and other emerging digital appliances

Supports DisplayPort resolutions up to 4K 60Hz.

Compliant with DisplayPort specification 1.2,HDCP 2.2 & DPCP

Supports 4K 60Hz (max. length: 5m in; 5m out); 4K 30Hz (max. length: 15m in; 20m out); 2560 x 1600 60Hz (max. length: 10m in; 20m out)

Supports DP++ Dual Mode, compatible with HDMI, DVI or VGA adapters.

	Model No.			DP-R01-130

	Input Connector			DisplayPort 20Pin Female

	Output Connector			DisplayPort 20Pin Female

	Resolution			4K @60Hz

	LED			1

	Housing			Plastic

	Power Supply			DC5V 1A

	Dimension(LxWxH)			55 x 54 x 20 mm

	Windows OS: 2000/XP/Vista/7/8/8.1/10 or higher
	Mac OS: 9.x/10.x or higher
	Linux OS

See Larger Image

DP-CAT2E ~New~

The DisplayPort Extender over CAT.6 allows the installation of a Hi-Def display up to 40 meters away from a DisplayPort source using two CAT.6 cables. Resolutions can be up to 3840 x 2160 @30Hz over two CAT. 6 24AWG cablings. HDCP is also supported. The Receiver is powered by the 2nd CAT.6 cable that extends the DisplayPort signal from the Transmitter, eliminating the need for an external power supply on the Receiver.

Note: the receiver may have power provided from the transmitter upon CAT.6 cabling connection. When the receiver is connected to an Active DisplayPort adapter, it requires an external power supply of 5V1A.

Extends DisplayPort audio and video up to 40 meters over 2 CAT.6 24AWG cablings

Supports 8-Bit Deep Color; supports DisplayPort 1.1a

Supports resolutions up to 3840 x 2160 @30Hz; 2560 x 1600 @60Hz; 2560 x 1440 @60Hz; 1920 x 1200 @60Hz;

1920 x 1080 @60Hz over two CAT.6 24AWG cablings.

HDCP compliant; supports the Active DisplayPort adapters

16-position EQ rotary switch to compensate for cable skew, enables HPD auto calibration

Power On LED indicator; no external power supply requirement on the receiver

Supports 2.1 stereo audio out; Enables the DisplayPort signal transmitting to HD audio out.

Rugged & cambered shape’s Aluminum enclosures are prefect for professional and industrial applications; surface-mountable

	Connector Transmitter Input			DisplayPort 20 Pin female

	Connector Transmitter Output			RJ-45 female x 2

	Connector Transmitter Audio			3.5mm Jack

	Connector Receiver Input			RJ-45 female x 2

	Connector Receiver Output			DisplayPort 20 Pin female

	Connector Receiver Audio			3.5mm Jack

	Interconnection Cable			CAT.6 24AWG Cabling

	DP Cbl ext. on 4k@30Hz Input			1m

	DP Cbl ext. on 4k@30Hz Output			2m

	Operating Distance			Up to 40m

	Video Data Rate			Up to 2.7Gb/s

	Resolution Range			Up to 3840 x 2160 @30Hz

	LED			1

	Operating Temperature			0°C to 40°C

	Power Supply Transmitter			5V1A

	Power Supply Receiver			*optional

	Housing			Aluminum

	Dimension ( L x W x H )			90 x 73 x 31mm

	Windows OS: 2000/XP/Vista/7/8/8.1/10 or higher
	Mac OS: 8.6/9.x/10.x or higher

See Larger Image

KVM-U3DP ~New~

The 2-Port USB 3.0 4K DisplayPort KVM Switch has a high quality and durability system to control two computers from one console of DP monitor, 2.1 surround sound audio, keyboard & mouse; shares with two USB 3.0 hubs. This KVM switch was rigorously tested with the most popular OS including Windows®, Linux® and Mac computers. It features 4K video resolution and allows users to access two 4K-enabled computers from a single USB keyboard & mouse, and DisplayPort video console.

Compliant with DisplayPort 1.2, HDCP; Supports DisplayPort Dual Mode (DP++) for direct output single-link DVI or HDMI signals via a powered DisplayPort-to-HDMI/DVI DP++ adaptor

Supports resolutions up to 3840 x 2160 @60Hz and 4K DCI (4096 x 2160 @60Hz); Supports Multi-Stream Transport (MST): displaying on multiple monitors/screen wall

Hosts selectable by Port selection pushbutton or hotkey; Supports multimedia keyboards; wireless keyboards and mice; Mac/Sun keyboards etc.

Console mouse port emulation/bypass feature supports most mouse drivers and multifunctional mice; Compatible with widescreen LCD monitors

Power on detection – either one of the computers is powered off, enables the KVM switch automatically switching to the other computer.

Supports 2.1 stereo audio out; Supports HD audio through DisplayPort playback; USB 3.0 hub and 2.1 surround sound audio

Provides USB 3.0 hub or audio out switching in independent method or combination with the host switching (USB HUB or audio Auto-Switch mode)

Auto-Scan function (Time interval can be adjusted between 5~999 seconds when the Auto-Scan function is enabled); Firmware upgradable

The USB 3.0 downstream ports comply with USB Battery Charging Spec 1.2; and enable to provide up to 1.5A (CDP mode) output current on each port

Enables Port selection pushbutton switching computer by its LED color changing (Green/White)

	Model No.			KVM-U3DP

	Number Of Computer Controlled			2

	Selection Method			Port Selection Pushbutton/Hot Key

	Host Selected LED			Amber x 2

	Port Selector LED			(Green/White) x 1

	Compliant with USB Version			USB 1.1 / USB 2.0 / USB 3.0

	Compliant with HID Version			USB HID 1.11

	PC Connectors Video			2 x DisplayPort 20 pin female

	PC Connectors USB			2 x USB 3.0 Type B female

	PC Connectors Speaker			2 x Audio Jack Female (Green)

	Console port Video			1 x DisplayPort 20 pin female

	Console port Mouse			1 × USB Type A female

	Console port Keyboard			1 × USB Type A female

	Console port Speaker			1 x Audio Jack Female (Green)

	Console port Selector			1 x Audio Jack Female (Black)

	USB Downstream ports			2 x USB 3.0 Type A female

	Auto-Scan Interval			5~999 sec (default 20 sec)

	Operating system supported			Windows, Mac and Linux

	Cable Length DisplayPort			1.5 m

	Cable Length USB 3.0			1.5 m

	Cable Length Audio			1.5 m

	Cable Length Port Selector			1.8 m

	Conn. length on 4K@60Hz Input			≦1.5m

	Conn. length on 4K@60Hz Output			≦1.5m

	Power mode			External power

	Power Supply			DC5V 4A

	Operating Temperature			0°C to 50°C

	Storage Temperature			-20°C to 60°C

	Humidity			0% - 80% RH (Non-condensing)

	Housing			Aluminum

	Dimensions (LxWxH)			170 x 74 x 30mm

	Windows OS: 2000/XP/Vista/7/8/8.1/10 or higher
	Mac OS: 9.x/10.x or higher
	Linux OS

See Larger Image

DP-14S ~New~

The 8K DisplayPort 1.4 Switch can display live audio and video contents on single monitor from 2 UHD video sources that have double DisplayPort outputs. It is backward compatible to either HDMI or DVI, and can be well adapted to accommodate these older technologies with appropriate adapter cables. The 8K DisplayPort 1.4 Switch is robust and durable with remarkable Aluminum housing. IR Remote Control is an optional add-on for switching and power on/off. Users can switch among 2 different UHD video sources that have double DisplayPort outputs with ease by push button; or IR remote control at hand, so it is very flexible in controlling over video contents on display.

Fully compliant with DisplayPort 1.4 HBR3, HDCP 2.3, HDR, DPCP

Supports UHD resolutions up to 7680 X 4320 @60Hz & 3840 X 2160 @144Hz 4:2:2 10bit

Supports DP++ Dual Mode, compatible with HDMI, DVI or VGA adapters

Supports 8K @60Hz ( max. length: 2m in; 10m out at 2 DP in ); 4K @144Hz ( max. length: 2m in; 10m out at 1 DP in )

Supports 4K @144Hz , 8K @30Hz; 5K @60Hz to 2 DP monitors

Routing any DisplayPort source from among two different DisplayPort to one monitor with sound support

Supports memory function and enables to retrieve the previous port while restarting the unit.

Supports data rates up to 8.1 Gbps / lane or 32.4 Gbps total

Supports audio 32 Ch up to 1536 kHz sample rate

Enable switching and power on/off by IR remote control or push button

	Connectors Input			DisplayPort 20 Pin Female x 4

	Connectors Output			DisplayPort 20 Pin Female x 2

	Frequency Bandwidth			32.4Gbps ( 8.1Gbps / lane )

	UHD Resolution			7680 X 4320 @60Hz ( 4:2:2 10bit )

	Environment Operating Temp.			5 ℃ ~ 40 ℃

	Environment Storage Temp.			-20 ℃ ~ 60 ℃

	Environment Humidity			0~80% RH, Non-condensing

	LED			5

	Push Button			1

	IR remote control			Yes

	Power Supply			5VDC 1A

	Cable Ext.length Input			2m

	Cable Ext.length Output			based on 8K @60Hz 10m out at 2 DP in

	Cable Ext.length Output			based on 4K @144Hz 10m out at 1 DP in

	Housing			Aluminum

	Dimension ( L x W x H )			130 x 74 x 30mm

	Windows OS: 2000/XP/Vista/7/8/8.1/10 or higher
	Mac OS: 9.x/10.x or higher
	Linux OS

See Larger Image

DP-201R

The 2-Port DisplayPort Switch can display live audio and video contents on single monitor from 2 DisplayPort output sources. It is backward compatible to either HDMI or DVI, and can be well adapted to accommodate these older technologies with appropriate adapter cables. The 2-Port DisplayPort Switch is robust and durable with remarkable Aluminum housing. IR Remote Control is an optional add-on for switching and power on/off. Users can switch among 2 different DisplayPort output sources with ease by push button; or IR remote control at hand, so it is very flexible in controlling over video contents on display.

Compliant with DisplayPort 1.2

Supports DP++ Dual Mode, HDCP 2.2 & DPCP

Routing any DisplayPort source from among two different DisplayPort to one monitor with sound support.

Supports memory function and enables to retrieve the previous port while restarting the unit.

Supports DisplayPort Resolution up to 4k2k @60Hz

Supports audio 7.1 Ch up to 192 kHz sample rate

Enable switching and power on/off by IR remote control or push button

	Model No.			DP-201R

	Input Connector			DisplayPort 20 Pin x 2

	Output Connector			DisplayPort 20 Pin x 1

	Frequency Bandwidth			21.6Gbps ( 4 lanes at 5.4Gbps )

	Video Resolution			4k2k @60Hz

	LED			2

	Push Button			1

	IR remote control			Yes

	Power Supply			5VDC 1A

	Cable Ext.length_Input			1m (based on 4K@60Hz)

	Cable Ext.length_Output			3m (based on 4K@60Hz)

	Housing			Aluminum

	Dimension ( L x W x H )			90 x 73 x 31mm
