Data Link Cable

LINK-SE2 ~New~

The USB 3.0 Data Link and KM Switch cable enables access multiple computers and associated monitors by sharing a single keyboard and mouse to switch between two computers. This product has the Data Link function allowing you to copy files on desktop between two computers. And it allows you move files quickly over USB 3.0, and works with Windows OS; to cut texts and paste them between computers.

KM function allows user to control computers and associated display monitors

Cut and paste text between two computers; Clipboard sharing

Performs File Transfer between two computers

Drag-and-drop user-friendly interface

Data Link function conforms to the Super speed USB specification

Switch mode: 1).Mouse movement 2).Hotkey

USB BUS powered

Compatible with Windows 7 / 8 / 8.1 / 10 or higher

The provided software is required in Windows OS

	Model No.			LINK-SE2

	Chipset			OT7300

	USB Data Speed (bps)			5G / 480M / 12M / 1.5M

	Data Transfer Rate			5Gbps

	Compliant Version			USB 3.0 /2.0 / 1.1

	Connector			USB Type A Male x 2

	LED Indicate			4 ( Green )

	Power Mode			Bus Powered

	Operation Mode			Peer to Peer

	Cable Length			1.5m

	Housing			Plastic

Windows 7 / 8 / 8.1 / 10 or higher

See Larger Image

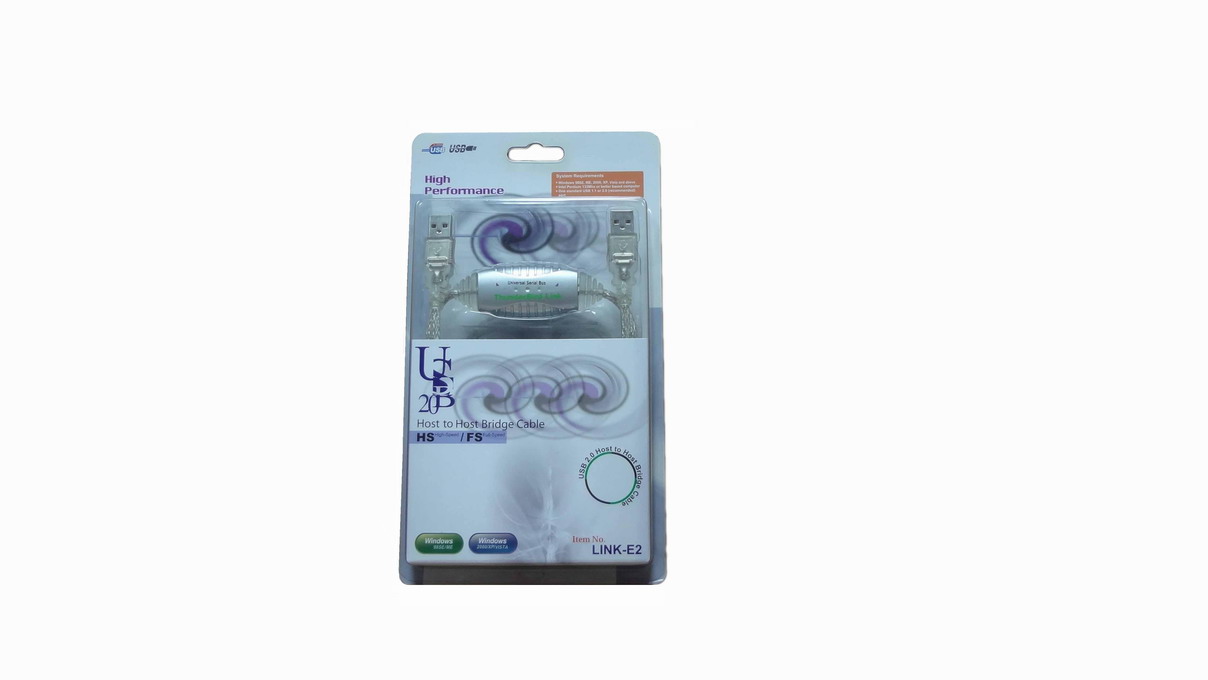

LINK-E2

USB Host-to-Host Bridge Cable is a low-cost and high-performance solution that provides bi-directional connectivity between two USB-compliant host systems. The PC users can inter-share data files with true plug-n-play and hot-swapping operation. Interaction can be accomplished in just seconds. LINK-E2 doesn’t need to install driver under Windows 2000/XP/Vista/7/8/8.1/10 or higher.

Fully Compliant with USB specification 1.1 and 2.0

Supports Data Transfer Rate of up to 16 Mbps

Supports Suspend and Resume Power Management

Supports Remote Wake-Up Mode

Transfer Files Directly between two (2) PCs or Laptop Computers using USB port

Dual Data Buffer Supporting Two-Way Data Transfer

Supports Bus Powered Mode

	Chip			OTI

	USB Data Speed (Mbps)			480/12/1.5

	Data Transfer Rate			16 Mbps

	USB Specification			USB 1.1/2.0 compliant

	Connector			USB Type A Male x 2

	Power Mode			Bus powered

	Operation Mode			Peer to Peer

	Cable Length			2 m

Windows OS: 2000/XP/Vista/7/8/8.1/10 or higher
